Attachments in Opter Driver

It can be set so that the driver is able to view and download files that have been attached to an order. JPG and PNG files can be opened directly in Opter Driver, or downloaded to your mobile phone. BMP, GIF, TIF and PDF files can be downloaded and then opened in another app that can handle those formats.

For information on how to add attachments to orders and how to configure the system for this, see Attachments in orders.

Note:

JPG and PNG files cannot be displayed in Opter Driver if the file names contain spaces or special characters, e.g. å, ä or ö.

Step 1: View attachments on the customer web

The files must be displayed in the orders on the customer web as they are downloaded from there to Opter Driver.

Click on Settings > Internet > Internet order settings.
Select the configuration in the list on the left for which attachments (e.g.“Customer”) are to be viewed and select Show attachments. The Attached files section is displayed in the detail view of the customer web with a list of the attachments on the order. If there are no attachments, the section is not displayed.
Click on to save all changes.

Step 2: Set the system up so that files displayed on the customer web can be displayed in Opter Driver

Configure the following mobile data setting:

Click on Settings > Mobile data > Settings mobile data.
Click on an empty row in the Name column and then on the down arrow in the row being added.
Select InternetBaseAddress from the list and enter the URL of the customer web in the Value column. For example, the URL may be “https://expresstransport.no/opter” or “https://expresstransport.opter.cloud” (if you are using the Opter cloud solution). For more information, see Customer web and Track & Trace.
Tip
In the Base address field of the Internet tab in the office settings, it is possible to see which address to enter in the Value column. Don't forget "https://" in front of the address.
Click on Save.

Step 3: Display attachments in the shipment lists, detail view and POD view

To let drivers know that there are attachments in the shipment, a list of the file names can be added to the shipment lists (New, Todo and Done), detail view and POD view.

This is done in App.Design. Click on Settings > Mobile data > Settings mobile data and then on Edit next to App.Design. Then add the following code where the list of files is to be displayed in the <summaryrows> (shipment lists), <expandedrows> (detail view) and/or <podrows> (signature page in the POD view) sections.

Copy code

List of attachments

1
2
3
4
5
6
      <row>
        <item itemname="'Bifogade filer'" font="BOLD" condition="ATTATCHMENTCOUNT" />
      </row>
      <row>
        <item itemname="ATTATCHMENT.FILENAME" />
      </row>

Attachments: can be changed to any text or deleted entirely.
BOLD: can be changed to any format or deleted entirely.
condition="ATTATCHMENTCOUNT": this condition prevents the “Attachments” text from being displayed if there are no attachments on the shipment.
ATTATCHMENT.FILENAME: must be on a separate line as the variable returns a list of file names.

Shipment lists code example, <summaryrows>

Copy code

Shipment lists New, Todo and Done

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
    <summaryrows>
      <row>
        <item itemname="CURRENTSTATUS" font="LARGE" />
        <item itemname="EARLIESTPICKUPTIME" font="LARGEBOLD" />
        <item itemname="LATESTDELIVERYTIME" font="LARGEBOLD" />
      </row>
      <row>
          <item itemname="'Lev',DOT,'info: ',ADDRESSINFOTO" condition="ADDRESSINFOTO" />
      </row>
      <row>
          <item itemname="'Hämtn',DOT,'info: ',ADDRESSINFOFROM" condition="ADDRESSINFOFROM" font="NORMAL" />
      </row>
      <row>
        <item itemname="ADDRESSFROM,' / ',STREETFROM,' ',STREETNOFROM,' / ',CITYFROM" width="100" font="BOLD" />
      </row>
      <row>
        <item itemname="ADDRESSTO,' / ',STREETTO,' ',STREETNOTO,' / ',CITYTO" width="100" font="BOLD" />
      </row>
      <row>
        <item itemname="'Bifogade filer'" font="BOLD" condition="ATTATCHMENTCOUNT" />
      </row>
      <row>
        <item itemname="ATTATCHMENT.FILENAME" />
      </row>
    </summaryrows>

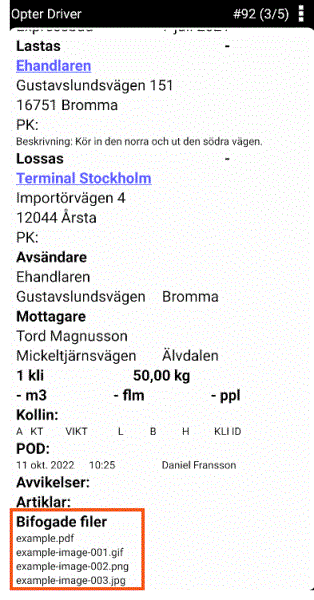

Detail view code example, <expandedrows>

Lines 174-179 contain the code for the attached files. font has been changed to LARGEBOLD.

Copy code

Detail view when opening a shipment

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
    <expandedrows>
      <row>
        <item itemname="CURRENTSTATUS" position="0" width="50" positioning="relative" font="LARGE" />
        <item itemname="CUSTOMER" width="50" font="LARGE" />
      </row>
      <row>
        <item itemname="SERVICETYPE" position="0" width="50" positioning="relative" font="LARGE" />
        <item itemname="ORDERDATE" position="0" width="50" positioning="relative" font="LARGE" />
      </row>

      <!-- Sender -->
      <row>
        <item itemname="'Lastas'" width="50" font="LARGEBOLD" />
        <item itemname="EARLIESTPICKUPTIME" position="50" width="25" positioning="relative" font="LARGEBOLD" />
        <item itemname="'-'" position="0" width="5" positioning="relative" font="LARGEBOLD" />
        <item itemname="LATESTPICKUPTIME" position="75" width="25" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="ADDRESSFROM" multiline="false" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="STREETFROM,' ',STREETNOFROM" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="ADDRESS2FROM" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="ADDRESS3FROM" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="ZIPCODEFROM,' ',CITYFROM" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="PHONEFROM" position="0" width="100" positioning="relative" font="LARGE" />
        <item itemname="'PK: ',ENTRECODEFROM" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="SENDERREFERENCE" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="'Beskrivning: ',ADDRESSHUBTEXTFROM" condition="ADDRESSHUBTEXTFROM" />
      </row>
      <row>
        <item itemname="'Beskrivning: ',ADDRESSHUBTEXTTO" condition="ADDRESSHUBTEXTTO"/>
      </row>



      <!-- Mottaker oppdrag -->
      <row>
        <item itemname="'Lossas'" position="0" width="50" positioning="relative" font="LARGEBOLD" />
        <item itemname="EARLIESTDELIVERYTIME" position="50" width="25" positioning="relative" font="LARGEBOLD" />
        <item itemname="'-'" position="0" width="5" positioning="relative" font="LARGEBOLD" />
        <item itemname="LATESTDELIVERYTIME" position="75" width="25" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="ADDRESSTO" multiline="false" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="STREETTO,' ',STREETNOTO" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="ADDRESS2TO" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="ADDRESS3TO" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="ZIPCODETO,' ',CITYTO" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="PHONETO" position="0" width="100" positioning="relative" font="LARGE" />-->
        <item itemname="'PK: ',ENTRECODETO" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="RECEIVERREFERENCE" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="CUSTOMERPROJECT" position="0" width="50" positioning="relative" font="LARGE" />
        <item itemname="PROJECTNUMBER" position="0" width="50" positioning="relative" font="LARGE" />
      </row>

      <!-- Avsender/Mottaker ordre -->
      <row>
        <item itemname="'Avsändare'" position="0" width="60" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="DELIVERYADDRESSFROM" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="DELIVERYSTREETFROM" position="0" width="100" positioning="relative" font="LARGE" />
        <item itemname="DELIVERYCITYFROM" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
      </row>

      <row>
        <item itemname="'Mottagare'" position="0" width="60" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="DELIVERYADDRESSTO" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="DELIVERYSTREETTO" position="0" width="100" positioning="relative" font="LARGE" />
        <item itemname="DELIVERYCITYTO" position="0" width="100" positioning="relative" font="LARGE" />
      </row>

      <!-- Dimensions -->
      <row>
        <item itemname="PACKAGES,' kli'" position="0" width="40" positioning="relative" font="LARGEBOLD" />
        <item itemname="WEIGHT,' kg'" position="0" width="60" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="VOLUME,' m3'" position="0" width="33" positioning="relative" font="LARGEBOLD" />
        <item itemname="LOADMETER,' flm'" position="0" width="33" positioning="relative" font="LARGEBOLD" />
        <item itemname="AREA,' ppl'" position="0" width="33" positioning="relative" font="LARGEBOLD" />
      </row>
      <!--
      <row>
        <item itemname="'Tillägg:'" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="ADDSERVICE.QUANTITY" position="0" width="20" positioning="relative" font="NORMAL" />
        <item itemname="ADDSERVICE.NAME" position="0" width="80" positioning="relative" font="NORMAL" />
      </row>
      -->
      <row>
        <item itemname="'Kollin:'" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="'A'" position="0" width="5" positioning="relative" font="NORMAL" />
        <item itemname="'KT'" position="0" width="12" positioning="relative" font="NORMAL" />
        <item itemname="'VIKT'" position="0" width="18" positioning="relative" font="NORMAL" />
        <item itemname="'L'" position="0" width="11" positioning="relative" font="NORMAL" />
        <item itemname="'B'" position="0" width="11" positioning="relative" font="NORMAL" />
        <item itemname="'H'" position="0" width="11" positioning="relative" font="NORMAL" />
        <item itemname="'KLI ID'" position="0" width="32" positioning="relative" font="NORMAL" />
      </row>
      <row>
        <item itemname="PACKAGE.QUANTITY" position="0" width="5" positioning="relative" font="SMALL" />
        <item itemname="PACKAGE.PACKAGETYPE" position="0" width="12" positioning="relative" font="SMALL" />
        <item itemname="PACKAGE.WEIGHT" position="0" width="18" positioning="relative" font="SMALL" />
        <item itemname="PACKAGE.DEPTH" position="0" width="11" positioning="relative" font="SMALL" />
        <item itemname="PACKAGE.WIDTH" position="0" width="11" positioning="relative" font="SMALL" />
        <item itemname="PACKAGE.HEIGHT" position="0" width="11" positioning="relative" font="SMALL" />
        <item itemname="PACKAGE.PACKAGEID" position="0" width="32" positioning="relative" font="SMALL" />
      </row>

      <row>
        <item itemname="'POD:'" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="POD.DATE" position="0" width="25" positioning="relative" font="NORMAL" />
        <item itemname="POD.TIME" position="0" width="25" positioning="relative" font="NORMAL" />
        <item itemname="POD.NAME" position="0" width="50" positioning="relative" font="NORMAL" />
      </row>

      <row>
        <item itemname="'Avvikelser:'" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="DAMAGE.TYPE" position="0" width="35" positioning="relative" font="NORMAL" />
        <item itemname="DAMAGE.COMMENT" position="0" width="65" positioning="relative" font="NORMAL" />
      </row>

      <row>
        <item itemname="'Artiklar:'" position="0" width="100" positioning="relative" font="LARGEBOLD" />
      </row>
      <row>
        <item itemname="PRICEITEM.UNIT1QUANTITY" position="0" width="25" positioning="relative" font="NORMAL" />
        <item itemname="PRICEITEM.UNIT1NAME" position="0" width="25" positioning="relative" font="NORMAL" />
        <item itemname="PRICEITEM.DESCR" position="0" width="50" positioning="relative" font="NORMAL" />
      </row>
      <row>
        <item itemname="'Attachments'" font="LARGEBOLD" condition="ATTATCHMENTCOUNT"/>
      </row>
      <row>
        <item itemname="ATTATCHMENT.FILENAME" />
      </row>
      <!-- Message -->
      <row>
        <item itemname="SENDERINSTRUCTION" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="DRIVERMESSAGEFROM" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="DRIVERMESSAGETO" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
      <row>
        <item itemname="DRIVERMESSAGE" position="0" width="100" positioning="relative" font="LARGE" />
      </row>
    </expandedrows>

POD view code example, <podrows>

Copy code

POD view

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
    <podrows>
      <row>
        <item itemname="CUSTOMER" width="50" />
        <item itemname="CUSTOMERLOGOTYPE" width="40" />
      </row>
      <row>
        <item itemname="'$from;',': ',DELIVERYADDRESSFROM"/>
      </row>
      <row>
        <item itemname="'$to;',': ',ADDRESSTO"/>
      </row>

      <row>
        <item itemname="'$package_quantity;',': ',PODPACKAGECOUNT" condition="PODPACKAGECOUNT"/>
      </row>
      <row>
        <item itemname="'Attachments:'" condition="ATTATCHMENTCOUNT"/>
      </row>
      <row>
        <item itemname="ATTATCHMENT.FILENAME" />
      </row>
    </podrows>

Step 4: Display Attached files on the menu in Opter Driver

To allow drivers to open images (JPG and PNG) and download files in Opter Driver, set the Attached files menu option to be displayed on the menu (). The option is displayed on the menu when drivers open a shipment on either of the Todo or Done tabs.

Proceed as follows:

Click on Settings > Mobile data > Settings mobile data.
Click on an empty row in the Name column and then on the down arrow in the row being added.
Select AttachmentsPermission from the list and enter “true” in the cell on the right.
Click on Save.

Attachments in Opter Driver

Note:

Step 1: View attachments on the customer web

Step 2: Set the system up so that files displayed on the customer web can be displayed in Opter Driver

Tip

Step 3: Display attachments in the shipment lists, detail view and POD view

Step 4: Display Attached files on the menu in Opter Driver

See also
