Manual route optimisation

When carrying out manual route optimisation on a vehicle, shipments must be preplanned or assigned to the vehicle. If you select shipments in dispatch that are not assigned or preplanned and press F9, the Marsruudi optimeerimine window opens, but no resource is selected for route optimisation. You cannot select a resource in the Marsruudi optimeerimine window if you have not enabled the multi-vehicle optimisation service.

If route optimisation is carried out for preplanned shipments, they are not automatically assigned to the resource, but this can be useful if, for example, you want to calculate the route sequence for the next day’s shipments, but not assign them yet.

For more information on the conditions and the factors and settings that affect route optimisation, see Route optimisation: preparation and configuration.

Step 1: Choose the vehicle on which route optimisation is to be carried out

You can carry out route optimisation on resources for which shipments have been assigned or preplanned. This can be done in different ways depending on your workflow.

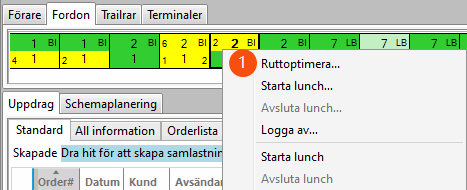

• Right-click on a resource box in dispatch and select Marsruudi optimeerimine (1). All shipments assigned to and loaded on the resource are displayed in the Marsruudi optimeerimine window. If the resource has no shipments assigned to it, Marsruudi optimeerimine is dimmed.



• Select the shipments that are preplanned or assigned to the resource you want to route optimise and press F9 (or click on the Muud > Saadetiste marsruudi optimeerimine (F9) menu tab).

  If you have preplanned shipments, you can filter or sort the Loodud list on the resource you want to route optimise to make sure you do not fail to select any of the preplanned shipments.

The Marsruudi optimeerimine window opens with the vehicle’s stops listed and the current route plotted on the map. The route sequence can be changed manually by selecting the addresses to move and then dragging and dropping them into a new place in the list, or clicking Üles (-)/Alla (+) at the bottom of the window, or pressing + (down)/- (up) on the numeric keypad.

The routes of all resources are shown on the map, the resources are round and the addresses are squares. Hover over a resource or address to view more information. For more information, see Explanation of symbols – map.

Addresses can be selected on the map by holding down shift and then dragging the mouse over the addresses. When the mouse button is released, they are highlighted in the address list and can be dragged and dropped as usual. This can be useful for selecting addresses that are geographically close to each other, instead of having to look them up in the address list.

Step 2: Calculate the route sequence and arrival times

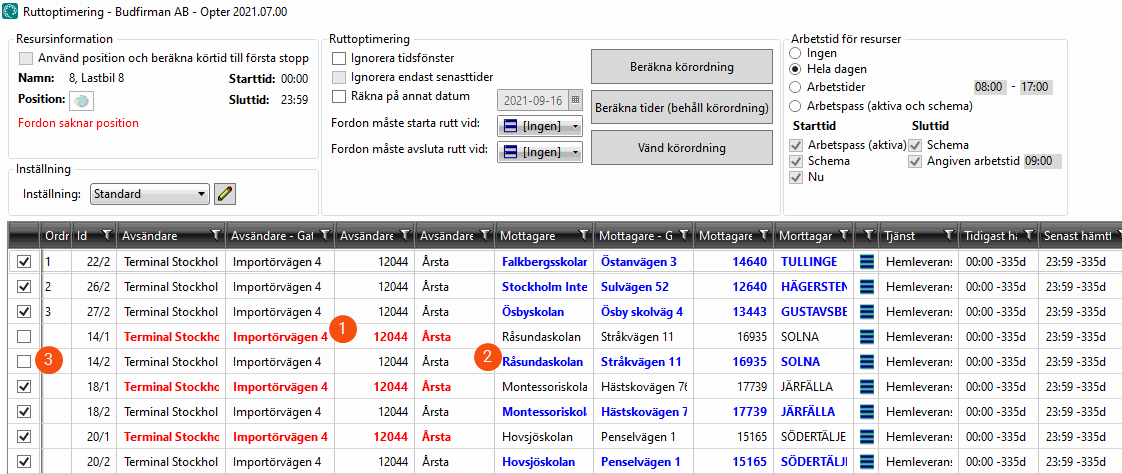

In the Marsruudi optimeerimine window there is a list of shipments. Each shipment in the address list has two lines, a red one for the pickup address (1) and a blue one for the delivery address (2). This is because the optimal route sequence is not always to pick up and deliver the shipments one by one, but perhaps to first pick up five shipments, (red addresses) then deliver one (blue address), pick up two more, deliver two and so on.

A shipment can be excluded from the route optimisation by deselecting its checkbox (3). If one of the addresses for a shipment is deselected (red or blue), the other is automatically deselected.

Click on Arvutage sõidujärjekord. The pick-up/delivery order is optimised, the arrival times for the pick-up and delivery addresses are calculated, and the updated route is displayed on the map.

If all pickup addresses (red) are before all delivery addresses (blue) in the route sequence, you have the option of changing the direction of the route so that it runs in the other direction. To do this, click on Pöörake marsruuti.

Once the calculation is complete, the route is displayed on the map and the shipments have an estimated arrival time, which is shown in the Hinnanguline column in the address list. Hovering the cursor over the symbols on the map results in a tooltip box appearing with information about the sender, receiver or resource, depending on which symbol is hovered over. For more information, see Explanation of symbols – map.

Sometimes a warning is displayed that there is no capacity for a vehicle, and that the vehicle will not undergo route optimisation. The capacity can be adjusted on the vehicle registry (or via the vehicle type). It is also possible to choose not to take capacity into account, by deselecting the current dimension on the Piirangud tab in the route optimisation settings (see Marsruudi optimeerimise seaded (window)).

A warning that certain address or vehicle positions are poor is sometimes displayed when calculating the route sequence. The address positions can be adjusted by clicking on Register > Kohandage aadressi asukohti. The vehicle positions cannot be adjusted.

If a vehicle has no position at all, it is assumed to be at the first stop when arrival times are calculated.

Step 3: Check omitted shipments

Check whether any shipments did not fit into the time frame and were therefore omitted from the route sequence. You will not get a warning about shipments being omitted, but you will see that this is the case because the shipments have not been given a number in the Tellimus column in the shipment list, i.e. they have not been given a route sequence. The prioritisation of shipments is done by the PTV.

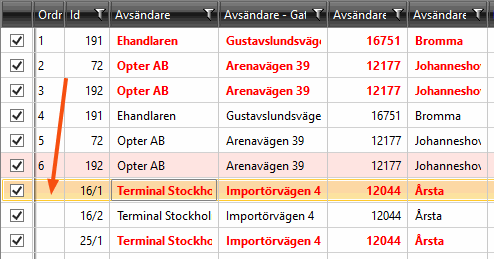

If you want to include the omitted shipments in the route, you can drag them to the place you want them to have in the route sequence. Then click on Arvutage aegu (säilitage järjekord) to calculate the arrival times for the new route.

Step 4: Save the route sequence and synchronise it with the driver’s Opter Driver

If you are satisfied with the route sequence that has been calculated, select Salvestage sortimisjärjekord ja hinnangulised ajad in the bottom right-hand corner. Then click on OK. The changes are saved and displayed in the driver’s Opter Driver. If you do not want to save any changes, click on Sulge instead.

In Opter Driver, the shipments are not split into pickup and delivery addresses. Instead, they are displayed in the correct order based on status. If a shipment has the Määratud status, it is displayed at the position in the route sequence of the pickup address (the Sorteerimisjärjekord – Alates column in dispatch). When the status is changed to Korjatud, the shipment is moved to the position in the route sequence of the delivery address (the Sorteerimisjärjekord – kuni column in dispatch).
