Last updated: 23.05.2024

Parvlaevad (panel in dispatch)

Tellimus > Tellimuse veokorraldus

Use this window to manage ferry bookings. For more information about ferries, see Ferry linesand Using ferries in dispatch.

The Parvlaevad panel (window) is now displayed on the right-hand side in dispatch. If the Parvlaevad panel is not displayed in dispatch, add it by clicking on the Vaade menu tab at the top of dispatch and then selecting Parvlaevad.

Kuupäev

Function Explanation

Kuupäev

Select the date for which ferry bookings are to be managed. Use the arrows to go forward or back one day.

Laevafirmad

Function Explanation
Laevafirmad

A list of the shipping companies with which the ferries in the Väljumised box are associated is shown here.

If the checkbox is selected, this means that at least one of the shipping company’s ferries is listed in the Väljumised box.

If there is a shipping company that you do not want to use, deselect the checkbox for that shipping company. When you deselect the checkbox for a shipping company, the company’s ferries are no longer displayed in the Väljumised box for the date you selected at the top of the Parvlaevad window in dispatch.

Väljumised

The ferry departures that are available for the date you have selected at the top can be seen here.

Function Explanation

Salvesta

Saves the bookings for the selected ferry.

Kustuta

Deletes all the bookings on the selected ferry.

Raamat

Creates a PDF file with a list showing all the bookings on the selected ferry. The PDF file can then be sent to the shipping company to book the ferry, for example.

There is no preset report, but you can create one yourself.

To create a ferry booking report, click on Seaded > Aruanded. Give the report a name, for example “Swedish Ferry Booking”. Select the file type, i.e. normal, text or HTML. Select the uses for which the report should be available. Click on Salvesta to save all changes. Click on Seaded > Kontorid, click on the Aruanded tab. In the Praami broneerimine drop-down list, select the report you created. Click on Salvesta to save all changes. For more information, see Aruanded (window).

If you need help, contact support.

Nimi (in the ferry box)

The name of the ferry.

The name of the ferry can be changed under Register > Parvlaevad.

Väljumine (in the ferry box)

The ferry’s departure time.

If the departure time and arrival time are on different dates, both the time and date are displayed. If the departure time and arrival time are on the same date, only the time is displayed. The date is the Kuupäev you selected at the top of the Parvlaevad window.

The ferry’s departure time can be changed under Register > Parvlaevad.

Saabumine (in the ferry box)

The ferry’s arrival time.

If the departure time and arrival time are on different dates, both the time and date are displayed. If the departure time and arrival time are on the same date, only the time is displayed. The date is the Kuupäev you selected at the top of the Parvlaevad window.

The ferry’s arrival time can be changed under Register > Parvlaevad.

The number at the top right of the ferry box

The number shows the number of shipments booked on the ferry. See image below.

The number at the bottom right of the ferry box

The number shows the number of resources booked on the ferry. See image below.

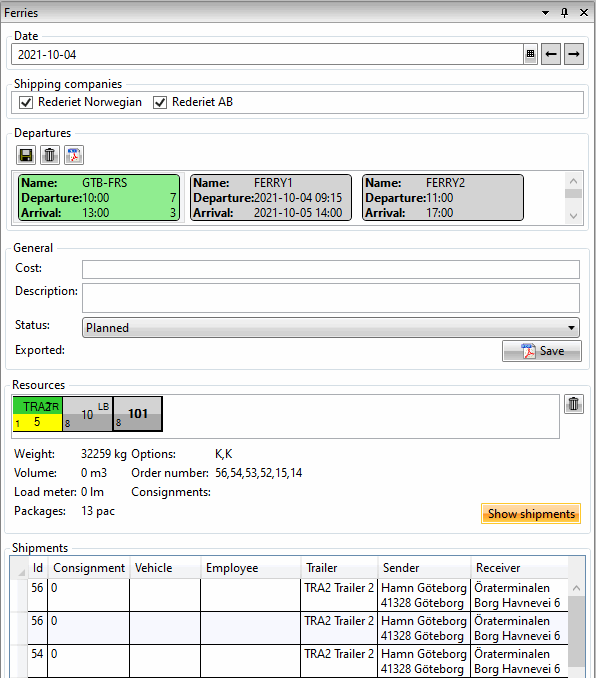

The image shows the upper part of the Parvlaevad window in dispatch. The arrow points to the numbers showing the number of resources and shipments booked on the ferry. In this example there is one resource and three shipments booked on the ferry. To see the shipments, select the ferry and click on Näita saadetisi at the bottom of the Parvlaevad window in dispatch. To see which resources are on the ferry, select the ferry to display the resource boxes in the Ressursid box further down in the Parvlaevad window. For more information, seeUsing ferries in dispatch

Üldine

Function Explanation
Kulu

Free text field.

If desired, the cost of the ferry booking can be entered.

Kirjeldus

Free text field. If desired, notes about the ferry booking can be made here.

Staatus

Status of the ferry booking.

Some statuses are set automatically and some can be set manually. The ferry box shows the status of the ferry booking using the following colours:

  • Grey: there is a ferry departure, but no shipments and no resources are booked on it. There are no ferry bookings.

    This status is set automatically if the ferry departure is available for the date you selected at the top of the Parvlaevad window. The status of the ferry booking cannot be changed, as there is no booking on this departure yet.

  • Green: Status Ajakavaga. The ferry box automatically turns green with the Ajakavaga status when the first shipment or resource is put on the ferry. If the status of the ferry booking is Broneeritud, Muudetud or Tühistatud, you can manually change it to Ajakavaga if desired.

    If all the shipments and resources are deleted from the ferry booking, the ferry box will be green until you click on in the Väljumised box, then the ferry box will turn grey. There are no ferry bookings.

  • Blue: Status Broneeritud. You have booked the transport on the ferry. This status can be set manually if you want the ferry to appear as booked here.

  • Yellow: Status Muudetud. You have changed something in the ferry booking. This status can be set manually if you want it to show here that something has changed in the ferry booking.

  • Pink: Status Tühistatud. You have cancelled your ferry transport. This status can be set manually if you want the cancellation of the ferry to be visible here.

It is possible to put shipments on a ferry regardless of the status of the ferry booking. This means that even if you have set the ferry to the Tühistatud status, for example, it is still possible to put shipments on the ferry.

Eksporditud

Shows the last time a PDF file with the ferry booking was created for the selected ferry.

Raamat

Creates a PDF file with a list showing the booking on the selected ferry. The PDF file can then be sent to the shipping company to book the ferry, for example.

There is no preset report, but you can create one yourself.

To create a ferry booking report, click on Seaded > Aruanded. Give the report a name, for example “Swedish Ferry Booking”. Select the file type, i.e. normal, text or HTML. Select the uses for which the report should be available. Click on Salvesta to save all changes. Click on Seaded > Kontorid, click on the Aruanded tab. In the Praami broneerimine drop-down list, select the report you created. Click on Salvesta to save all changes. For more information, see Aruanded (window).

If you need help, contact support.

Ressursid

Function Explanation
Fields for resource boxes

The field shows an overview of the resources booked on the selected ferry.

The resources shown as resource boxes here are included in the ferry booking, but this does not automatically mean that they have been jointly assigned all the shipments booked on the ferry.

To delete a resource from the ferry, right-click on the resource box and click on or select the resource box and click on . If the resource you want to delete has shipments on the ferry booking, you will receive a message indicating that if you delete the resource you will leave one or more shipments without a resource on the ferry. You will be asked whether you want to delete these shipments from the ferry. Answer Jah or Ei. If you answer Ei, there will be shipments without a resource booked on the ferry. If you answer Jah, the shipments will be placed under Loodud in dispatch.

Kaal

The sum of the weight of all the shipments booked on the selected ferry.

The weight is displayed in kilograms (kg).

Maht

The sum of the volume of all the shipments booked on the ferry.

The volume is displayed in cubic metres (m3).

Laadimismeeter

The sum of the number of load metres for all the shipments booked on the ferry.

The number is displayed in load metres (lm).

Pakkeüksused

The sum of the number of packages in all the shipments booked on the ferry.

The number is displayed in packages (pac).

Valikud

Options such as Refrigeration (R), Heating (H) or Sack truck (ST) for shipments booked on the selected ferry.

Tellimuse number

The order numbers of the shipments booked on the selected ferry.

Saadetised

If there are consignments booked on the selected ferry, the consignment order numbers are displayed here.

Näita saadetisi

Click on Näita saadetisi to display the list of shipments booked on the selected ferry.

Saadetised

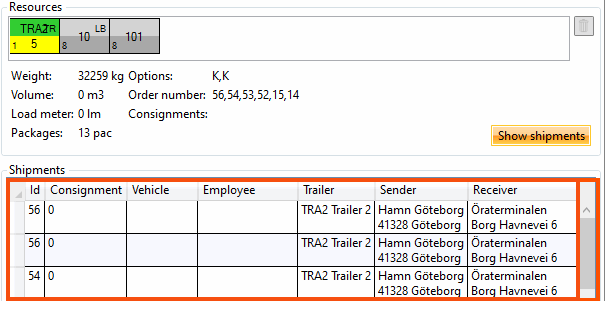

This box displays a list of the shipments booked on the selected ferry. This box is only visible after you have chosen to display the shipments by clicking on Näita saadetisi in the Ressursid box.

The resources (i.e. Sõidukid, Töötaja and Haagis) shown in the list are the resources to which the shipments are assigned, but this does not automatically mean that those resources are included in the ferry booking.

The resources shown as resource boxes in the Ressursid box are included in the ferry booking, but this does not automatically mean that they have been jointly assigned all the shipments booked on the ferry.

Function Explanation
Tunnus

Order number.

Kaubasaadetis

Consignment order number.

If the shipment is part of a consignment, the consignment order number is displayed here.

(If the shipment is a consignment shipment, a zero (“0”) is displayed in this column).

Sõidukid

The vehicle to which the shipment is assigned.

Töötaja

The employee to whom the shipment is assigned.

Haagis

The trailer to which the shipment is assigned.

Saatja

The shipment’s pickup address.

Saaja

The shipment’s delivery address.
